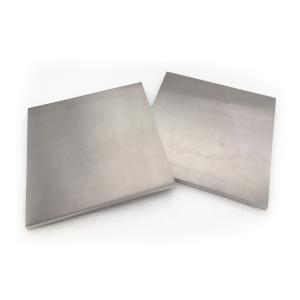

10% Cobalt Tungsten Carbide Steel Lapping Plate K40 Grade For Stainless Steel

Brand Name : CHAOYU

Model Number : Standard and Customized

Certification : ISO9001:2008,CE,SGS,etc.

Place of Origin : ZHUZHOU,CHINA

MOQ : 1 PC

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10 TONS per month

Delivery Time : 7-10 days

Packaging Details : Standard export cartons or plywood case.

Binder : Cobalt

Quality grade : K40

Surface treatment : Blank,ground,polished

Trial order : Acceptable and welcome

Business Type : Manufacturer since 1998

Certificate : ISO9001:2008

Grain size : 0.8mm fine grain

Other service : Technical guide

Contact Now

K40 Grade 10% Cobalt Tungsten Carbide Lapping Plates for Stainless Steel

Item name tungsten carbide plates/bars/strips/block
Material Original tungsten carbide material
Recommended YL80.1/YL80.2/YG8/YG15/YG20
Application planer cutting tool / pliner plates / metal working / stone working
Business type Manufactuer since 1998
Surface treatment Plain / grinding /polished as your request
Packing Paper case to every pc, carton out wrapped
Delivery 7-10 days for normal PO
Advantages HIP sintering,CNC machining and fast delivery
product keywords tungsten carbide plate for industrial production line

10% Cobalt Tungsten Carbide Steel Lapping Plate K40 Grade For Stainless Steel

Main Features

1.stable property : testing pieces before mass production is produced to ensure the stable property of carbide flats.

2.Small allowance : small allowance helps to control our productin cost and decrease your importing cost.

3.Various grades and dimensions: with our CNC machining system,it is workable even for 1 PC rectangular carbide blanks.

10% Cobalt Tungsten Carbide Steel Lapping Plate K40 Grade For Stainless Steel

Dimension

These dimensions are just part of our moulds,if you can't find the dimension you are looking for,please contact us for confirmation.

10% Cobalt Tungsten Carbide Steel Lapping Plate K40 Grade For Stainless Steel

Sr.No Length(mm) Width(mm) Thickness(mm) Sr.No Length(mm) Width(mm) Thickness(mm)
1 50 50 2-40 11 250 250 2-200
2 70 70 2-50 12 300 300 2-200
3 100 100 2-70 13 70 50 2-40
4 102 102 2-70 14 110 80 2-50
5 105 105 2-70 15 125 72 2-50
6 125 125 2-80 16 150 60 2-50
7 120 120 2-80 17 155 60 2-50
8 150 150 2-100 18 150 100 2-80
9 180 180 2-150 19 200 100 2-80
10 200 200 2-150 20 300 200 2-80

Quality Grades

Main grade grade K10(YG6X),K20(YG6),K30(YG8),YG15,YG20,YT15(P10),YW1(M10),for more information

please contact us through email.

Grade ISO grade

Grain size

(um)

Binder

density

(g/cm³)

Hardness
(HRA)

T.R.S

(N/m㎡)

YG6A

K20 0.8 6 ≥15.10 ≥91.5 ≥1580
YG6X K10 1.0 6 ≥15.00 ≥91.0 ≥1880
YL80.1 K30 1.5 8 ≥14.80 ≥89.5 ≥2020
YL80.4 K30-K40 1.5 12 ≥14.50 ≥88.0 ≥2600
YL80.2 K30-K40 1.5 15 ≥14.00 ≥87.0 ≥2900
YL80.3 1.0 20 ≥13.80 ≥86.0 ≥2600

Application

1.Metal working:processed into press tool,blade,cutter,wear parts,blanks and polishing tungsten carbide plates for machinery lathe to machine HSS material,Alu,steel,and stainless steel,etc.
2.Wood working:blank carbide plate and polished solid tungsten carbide plates for wood working stone.
3.Stone working:blank and polished solid tungsten carbide plates for crushing of marble,granite,cobblestone,etc.
4.Other application:such as wear resistance parts of punching mold,measuring and cutting industry.

Production of tungsten carbide plates

1. Dust-Free Workshop: All staff must wear specified uniforms before entering the workshop.

2. Strict rules of operation: All operation need be conducted strictly as process rules.

3. New testing piece: Testing piece must be produced before a new batch of material is used for mass production.

4. Double Quality Checking: Inspection for semi-finished and finished products are essential.

5. Safe package and delivery: To ensure that clients receive our goods with good looks and good quality.10% Cobalt Tungsten Carbide Steel Lapping Plate K40 Grade For Stainless Steel

10% Cobalt Tungsten Carbide Steel Lapping Plate K40 Grade For Stainless Steel

Company Introduction

How to get exactly quotation based on clients requirements:

Necessary information required for manufacturing tungsten carbide cold heading dies:
  • Specification ( like OD*ID*Length size,shape,angle etc.)
  • Tungsten carbide grade, or chemical composition
  • Surface condition: sintered blank or fine grinding
  • Tolerance on dimension ( if you have)
  • If you are not quite clear about which tungsten carbide grade is suitable, please provide us the applications to suggest you a suitable one.

10% Cobalt Tungsten Carbide Steel Lapping Plate K40 Grade For Stainless Steel

Customized size carbide rectangular parts are available here,your inquiry will be more than welcome,work with us!
