K30 V11-125 Tungsten Carbide Sleeve Seat for Valve and Pumps
Tungsten carbide valve seats for oil industry
1 abrasion resistance
2 high tensile stength
3 rational hole-shape designing
4 high quality and comepetive price
Comparison of material on valve balls and seats
1.The three most common materials for balls and seats are Tungsten Carbide, Nickel Carbide, and Titanium Carbide (balls only).
Tungsten Carbide is the industry standard and for good reason;
2.Tungsten carbide has proven itself over many years of service in the field with excellent wear properties and has a cobalt binder.
3.Nickel Carbide has similar wear properties and has a nickel binder,it is best suited to corrosive and/or wet environments.
4.Titanium Carbide is the relatively “new kid on the block”. It is a highly alloyed material suitable for all environments. Titanium Carbide has the advantages of being less expensive, easier to grind, and weighs considerably less than the other two materials. However, it is best suited for balls only, not seats.
Dimensions of solid tungsten carbide seats
These specs are the most common dimensions in our factory,if you can't find the one you need,please contact for more information.
| Sr. code | V11-106 | V11-125 | V11-150 | V11-175 | V11-200 | V11-225 | V11-250 | V11-375 |
| SD | 0.625
(15.88) | 0.750
(19.05) | 0.938
(23.84) | 1.125
(28.58) | 1.250
(31.75) | 1.375
(34.93) | 1.688
(42.88) | 2.250
(57.15) |
| D 0/-0.005 | 0.793
(20.14) | 0.918
(23.32) | 1.168
(29.67) | 1.388
(36.26) | 1.478
(37.54) | 1.720
(43.69) | 2.010
(51.05) | 3.072
78.03 |
d
+/-0.005 | 0.460
(11.68) | 0.550
(13.97) | 0.670
(17.02) | 0.825
(20.96) | 0.960
(24.38) | 1.060
(26.92) | 1.310
(33.27) | 1.700
(43.18) |
h
+/-0.01 | 0.500
(12.70) | 0.500
(12.70) | 0.500
(12.70) | 0.500
(12.70) | 0.500
(12.70) | 0.500
(12.70) | 0.500
(12.70) | 0.500
(12.70) |
Quality grade of tungsten carbide seats
we offer a wide range of tungsten carbide seats for you to choose,the main quality grade is
K30(YG8),YG11,YG10X.
| Grade | ISO grade | Grain size (um) | Binder | density (g/cm³) | Hardness
(HRA) | T.R.S (N/m㎡) |
| YG6X | K10 |
fine
| 6 | ≥14.95 | ≥91.5 | ≥1880 |
YG8(C2) | K30 | medium | 8 | ≥14.80 | ≥89.5 | ≥2020 |
YG11
| K40 | medium | 11 | ≥14.70 | ≥87.0 | ≥2600 |
YG10X
| | fine | 10 | ≥14.60 | ≥91.5 | ≥3200 |
Application of tungsten carbide spheres and seats
Tungsten carbide seat application has various oil field equipment and oil field valves such as Conventional Gas Lift Valves, Wireline Retrivable (WLR) Injection Pressure Operated (IPO) Gas Lift Valves etc.
Tungsten carbide seat inserts are made from a tungsten carbide alloy and are suitable for all applications including:
Petrol (leaded and unleaded)
Alcohol
Methanol
Diesel
LPG & CNG
Industrial
Turbo and Supercharge
Production of tungsten carbide valve seats:
Package and delivery of tungsten carbide engine valve seat
Other products you may interested:

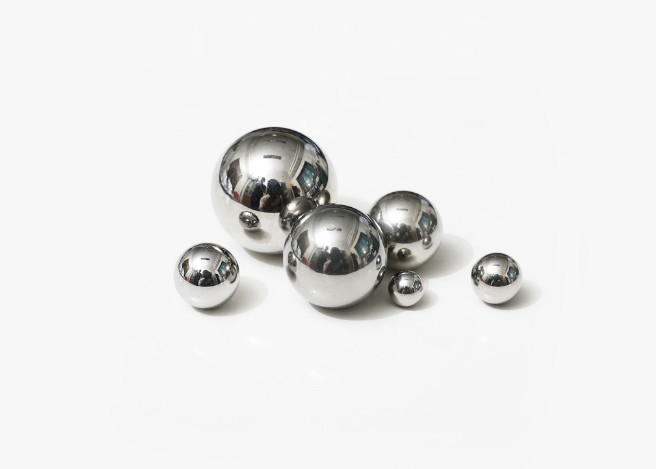

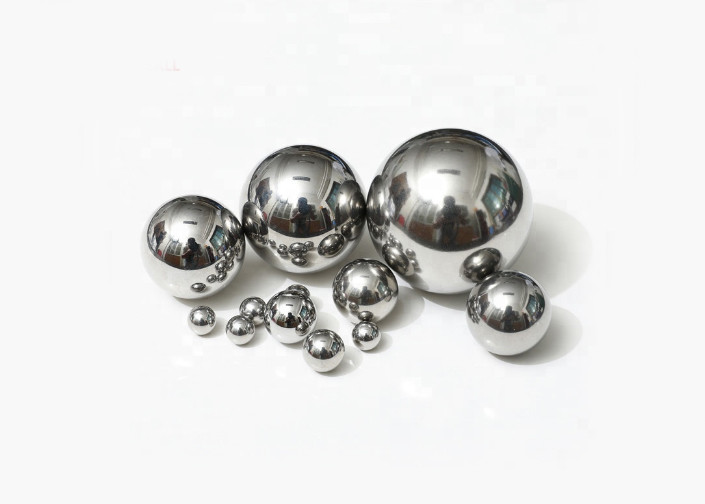

Tungsten carbide balls,click it for more information
Attentively service all the time
Customized carbide seats are available too,your inquiry will be more than welcome,work with us!
