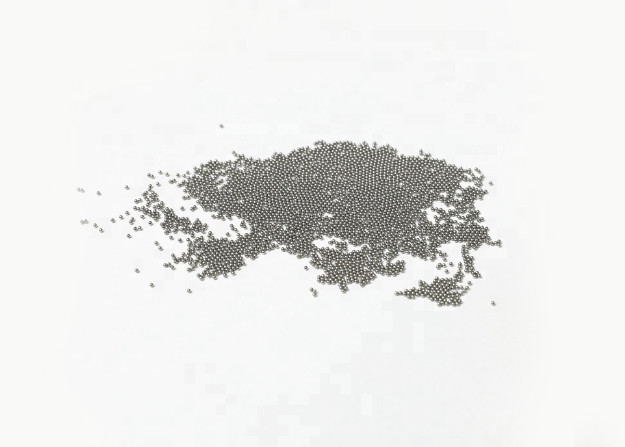

K10 / YG6X G3 Tolerance Φ2.0mm Tungsten Carbide Beads Used as Pen Balls
Brief Introduction of Tungsten Carbide pellets
1.Cemented carbide ball also known as tungsten ball, pure tungsten ball, pure cemented carbide ball and tungsten alloy 2.ball. Use pure tungsten carbide material is the highest density tungsten carbide ball ball, its density exceeds 19.2g / cm3, 3.he reasons for the use of pure tungsten carbide ball applicator that has the highest melting point of tungsten carbide ball.
Features of our tungsten carbide pellets
-Tungsten carbide pellet s have a high wear resistance tungsten carbide materials and corrosion resistance, etc.
-The work is mainly used in all kinds of seals, and the pellets compared to other materials such as steel ball
-Tungsten carbide ball is to meet its high density and balanced ball requirements.
Dimensions of solid tungsten carbide pellets
These specs are the most common dimensions in our factory,if you can't find the one you need,please contact for more information.
| Diameter (mm) | Diameter (mm) | Diameter (mm) | Diameter (mm) |
| 2.0 | 2.38125 | 2.5 | 3.0 |
| 3.175 | 3.5 | 4.0 | 4.5 |
| 4.7625 | 5.0 | 5.5 | 6.0 |
| 6.35 | 6.5 | 7.0 | 7.144 |
| 7.5 | 7.938 | 8.0 | 8.5 |
| 9.0 | 9.525 | 10.0 | 11.0 |
| 11.1125 | 12.0 | 12.7 | 13.0 |
| 13.494 | 14.0 | 14.2875 | 15.0 |
| 15.875 | 16.0 | 17.0 | 17.4625 |
| 18.0 | 19.0 | 19.05 | 20.0 |
| 22.225 | 25.0 | 25.4 | 28.575 |
| 30.0 | 31.75 | 38.1 | 42.8625 |
| 50.8 | | | |
Tolerance of tungsten carbide pellets.
| Grade | Sphericity | Basic Diameter Tolerance | Maximum Surface Roughness |
| G3 | 0.000003" | +/- .00003" | 0.5 |
| G5 | 0.000005" | +/- .00005" | 0.8 |
| G10 | 0.000010" | +/- .0001" | 1.0 |
| G25 | 0.000025" | +/- .0001" | 2.0 |
| G50 | 0.000050" | +/- .0002" | 3.0 |
| G100 | 0.0001" | +/- .0005" | 5.0 |
| G200 | 0.0002" | +/- .0010" | 8.0 |
Quality grade of tungsten carbide pellets
we offer a wide range of tungsten carbide spheres for you to choose,the main quality grade is K10(YG6X),K20(YG6),K30(YG8).
| Grade | ISO grade | Grain size (um) | Binder | density (g/cm³) | Hardness
(HRA) | T.R.S (N/m㎡) |
| YG6X(C3) | K10 | 1.2 | 6 | ≥15.00 | ≥91.0 | ≥1880 |
| YG6(C1) | K20 | 1.5 | 6 | ≥14.90 | ≥90.0 | ≥1580 |
| YG8(C2) | K30 | 1.5 | 8 | ≥14.80 | ≥89.5 | ≥2020 |
Application of tungsten carbide pellets
Tungsten carbide pellets are mainly used for bearings,valves,flow meters,ball screws,gauging and ball pens
Package and delivery of tungsten carbide pellets:
Production Process of tungsten carbide pellets:
We supply:
-tungsten carbide blank pellets;
-tungsten carbide polished pellets;
-OEM tungsten carbide pellets.
Customized size carbide balls are available too,your inquiry will be more than welcome,work with us!
