V11-106 Hard Alloy Valve Ball for Subsurface Sucker Rod Pumps and Fittings ​

Zhuzhou Chaoyu Industrial Co.,Ltd
Contact Now

V11-106 Hard Alloy Valve Ball for Subsurface Sucker Rod Pumps and Fittings ​

Brand Name : CHAOYU

Model Number : V11-250 Tungsten carbide valve ball

Certification : ISO9001:2008,CE,SGS,etc.

Place of Origin : ZHUZHOU,CHINA

MOQ : 1 PC

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10 Tons per month

Delivery Time : 12-15 days

Packaging Details : Standard export cartons or plywood case.

Item name : V11-106 Tungsten carbide valve ball

Grade : K20 original material

Dimension : 0.625 inch (Φ15.88mm)

Tolerance grade : G25

Samples : Available

Business type : Manufacturer since 1998

Contact Now

V11-106 Hard Alloy Valve Ball for Subsurface Sucker Rod Pumps and Fittings ​

Property of our tungsten carbide valve balls
Grade:K20(YG6)
Density: 14.85-15.0g/cm³
Hardness: ≥ HRA 91.0
T.R.S: ≥1880 n/m㎡
Porosity: A02B00C00
V11-106 Hard Alloy Valve Ball for Subsurface Sucker Rod Pumps and Fittings ​

Specs of Tungsten Carbide valve balls and seats

V11-106 Hard Alloy Valve Ball for Subsurface Sucker Rod Pumps and Fittings ​

API code V11-106 V11-125 V11-150 V11-175 V11-200 V11-225 V11-250 V11-375
SD+/-0.025

0.625''

(15.88mm)

0.750''

(19.05mm)

0.938''

(23.83mm)

1.125''

(28.58mm)

1.250''

(31.75mm)

1.375''

(34.93mm)

1.688''

(42.88mm)

2.250''

(57.15mm)

h+0.50/+0.25

0.500''

(12.7mm)

0.500''

(12.7mm)

0.500''

(12.7mm)

0.500''

(12.7mm)

0.500''

(12.7mm)

0.500''

(12.7mm)

0.500''

(12.7mm)

0.750''

(19.05mm)

D+0/-0.13

0.793''

(20.14mm)

0.918''

(23.32mm)

1.168''

(29.67mm)

1.388''

(36.26mm)

1.478''

(37.54mm)

1.720''

(43.69mm)

2.010''

(51.05mm)

3.072''

(78.03mm)

d+/-1.27

0.460''

(11.68mm)

0.550''

(13.97mm)

0.670''

(17.02mm)

0.825''

(20.96mm)

0.960''

(24.38mm)

1.060''

(26.92mm)

1.310''

(33.27mm)

1.700''

(43.18mm)

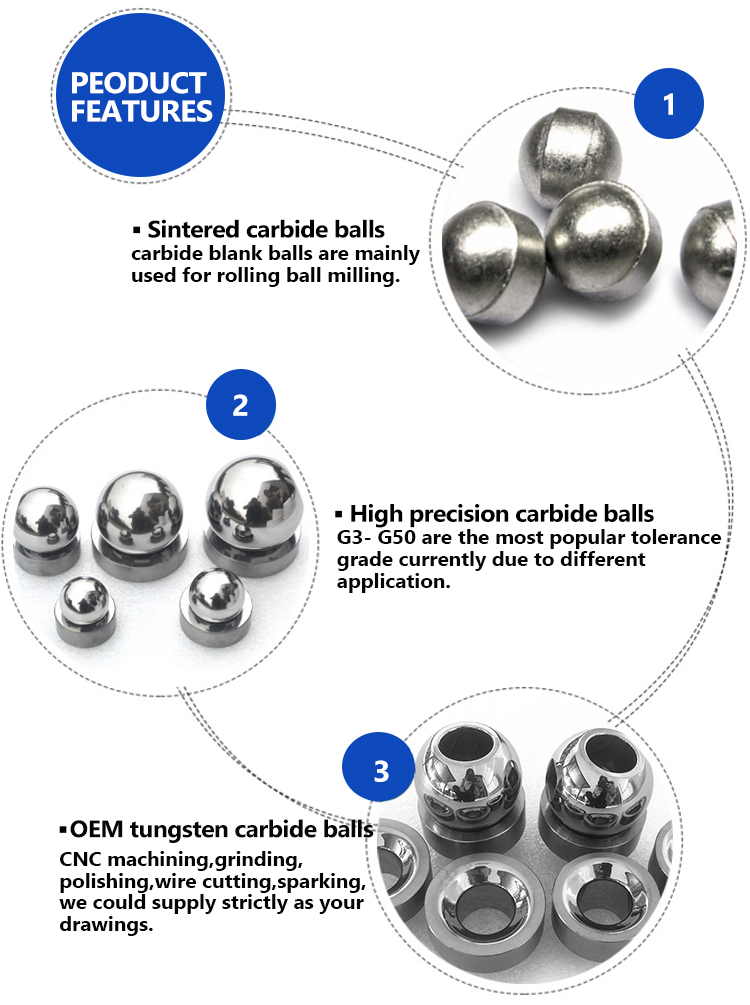

We supply :

tungsten carbide balnk balls

tungsten carbide polished balls

tungsten carbide OEM balls

V11-106 Hard Alloy Valve Ball for Subsurface Sucker Rod Pumps and Fittings ​


Quality grade of tungsten carbide bearing balls
we offer a wide range of tungsten carbide spheres for you to choose,the main quality grade is K10(YG6X),K20(YG6),K30(YG8).

Grade ISO grade

Grain size

(um)

Binder

density

(g/cm³)

Hardness
(HRA)

T.R.S

(N/m㎡)

YG6X(C3)

K10 1.2 6 ≥15.00 ≥91.0 ≥1880
YG6(C1) K20 1.5 6 ≥14.90 ≥90.0 ≥1580
YG8(C2) K30 1.5 8 ≥14.80 ≥89.5 ≥2020



Application of tungsten carbide bearing balls
Tungsten carbide spheres are mainly used for bearings,valves,flow meters,ball screws,gauging and ball pens
V11-106 Hard Alloy Valve Ball for Subsurface Sucker Rod Pumps and Fittings ​
Package and delivery of tungsten carbide bearing balls:
V11-106 Hard Alloy Valve Ball for Subsurface Sucker Rod Pumps and Fittings ​
Production Process of tungsten carbide bearing balls:
V11-106 Hard Alloy Valve Ball for Subsurface Sucker Rod Pumps and Fittings ​

How to get exactly quotation based on clients requirements:

Necessary information required for manufacturing tungsten carbide cold heading dies:
  • Specification ( like OD*ID*Length size,shape,angle etc.)
  • Tungsten carbide grade, or chemical composition
  • Surface condition: sintered blank or fine grinding
  • Tolerance on dimension ( if you have)
  • If you are not quite clear about which tungsten carbide grade is suitable, please provide us the applications to suggest you a suitable one.


Customized size carbide balls are available too,your inquiry will be more than welcome,work with us!
