Small YG20 Tungsten Carbide Cold Forming Dies High Wear Resistance

Zhuzhou Chaoyu Industrial Co.,Ltd
Contact Now

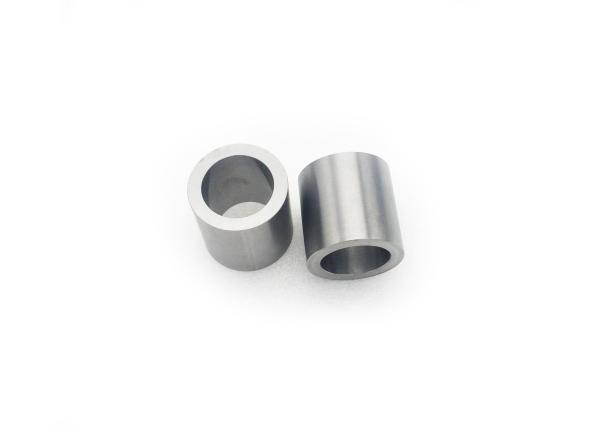

Small YG20 Tungsten Carbide Cold Forming Dies High Wear Resistance

  • 1
  • 2

Brand Name : CHAOYU

Model Number : Standard and customized

Certification : ISO9001:2008,CE,etc

Place of Origin : Zhuzhou,China

MOQ : 1 PC

Price : NEGOTIABLE

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10 Tons per month

Delivery Time : 7-10 days

Packaging Details : Standard export carton,plywood case

Item name : YG 20 Tungsten carbide cold heading die

Material content : WC+CO 100% virgin raw material

Place of origin : Zhuzhou,China

Origins of Certificate : Available for all types

MOQ : 7-12 days

Other service : OEM and ODM

Contact Now

Tungsten carbide solid punching and heading dies blanks with good wear resistance

Brief Introduction of Tungsten Carbide cold forging dies
1. 100% raw material to produce tungsten carbide products.
2. Hip sintered, high hardness, high wear resistance
3. Various sizes and full types available
4. Reasonable price,Fast delivery time
5. OEM Customized(small order accepted,professional technical support)
6.ISO 9001 Certification

Small YG20 Tungsten Carbide Cold Forming Dies High Wear Resistance


Dimensions of solid tungsten carbide cold forging dies

How to get exactly quotation based on clients requirements:

Necessary information required for manufacturing tungsten carbide cold heading dies:
  • Specification ( like OD*ID*Length size,shape,angle etc.)
  • Tungsten carbide grade, or chemical composition
  • Surface condition: sintered blank or fine grinding
  • Tolerance on dimension ( if you have)
  • If you are not quite clear about which tungsten carbide grade is suitable, please provide us the applications to suggest you a suitable one.
Sr.No OD(mm) ID(mm) H(mm)
1 5.0-9.0 0.5-3.0 2-60
2 10.0-20.0 0.5-9.0 2-70
3 21.0-50.0 0.5-20.0 2-70
4 51.0-150.0 0.5-40.0 2-70

Small YG20 Tungsten Carbide Cold Forming Dies High Wear Resistance


Quality grade of tungsten carbide cold forging dies
Main grade grade YL90(YG20C),YL90.4(YG24C),YL90.5(YG25C)

Grade

Grain size

(um)

Binder

density

(g/cm³)

Hardness
(HRA)

T.R.S

(N/m㎡)

YL80.2(YG15) medium 15% 14.00-14.20 ≥86.5 ≥2900
YL80.3(YG20) fine 20% 13.50-13.80 ≥85.0 ≥2540
YL80 fine 16% 13.80-14.05 ≥89.5 ≥3200
YL90(YG20C) coarse 20% 13.50-13.70 ≥83.0 ≥2500
YL90.1 coarse 16% 13.90-14.10 ≥84.5 ≥2340
YL90.2 coarse 18% 13.70-13.90 ≥83.5 ≥2400
YL90.4(YG24C) coarse 24% 13.20-13.40 ≥82.0 ≥2600
YL90.5(YG25C) coarse 25% 13.00-13.20 ≥81.0 ≥2760

Package and delivery

Currently we have cartons,plywood case and metal drums.

Small YG20 Tungsten Carbide Cold Forming Dies High Wear Resistance
Application of tungsten carbide cold forging dies

Tungsten carbide dies can be divided into four categories according to use:

1.Tungsten carbide anvil
2.Tungsten carbide drawing dies (such molds accounted for the vast majority of tungsten carbide die.)
3.Cold heading, cold punching, forming and shaping dies
4.Non-magnetic die
5.Hot tungsten carbide die


Metal working:processed into press tool,blade,cutter,wear parts,blanks and polishing tungsten carbide blocks for machinery lathe to machine HSS material,Alu,steel,and stainless steel,etc.

Production process of tungsten carbide cold forging dies

Small YG20 Tungsten Carbide Cold Forming Dies High Wear Resistance

P.S: Customized size carbide blocks are available here,your inquiry will be more than welcome,work with us!
