200 * 200 * 20mm YG20 Tungsten Carbide Block For EDM Parts High Performance

Name: 200 200 20mm YG20 Tungsten Carbide Block For EDM Parts High Performance
Brand: CHAOYU
Price: 1 USD

Brand Name : CHAOYU

Model Number : Standard and Customized

Certification : ISO9001:2008,CE,SGS,etc.

Place of Origin : ZHUZHOU,CHINA

MOQ : 1 PC

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10 TONS per month

Delivery Time : 12-15 days

Packaging Details : Standard export cartons or plywood case.

Material : Tungsten carbide

Grade : YL10.2,YG10X,YG15,YG20,etc

Dimension : As dimension table below

Surface : Blank,ground,polished

Trial order : Acceptable and welcome

Business Type : Manufacturer since 1998

Key words : carbide flat,carbide pieces

Other services : Technical guide

Contact Now

200*200*20mm YG20 tungsten carbide blocks for EDM parts

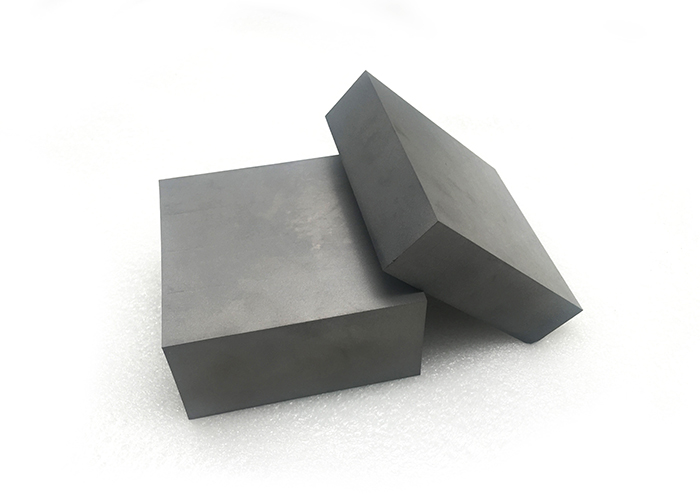

Brief Introduction of Tungsten Carbide blocks
Tungsten carbide plates are one of our leading products,With more than 600 sets of moulds,we could supply more than 2000 specification on tungsten carbide plates with MOQ 1 PC,Pre-sale technical guide is available here.

200 * 200 * 20mm YG20 Tungsten Carbide Block For EDM Parts High Performance

Advantanges of our tungsten carbide blocks
1.stable property: testing pieces is produced before every new batch of new material to ensure the stable property.
2.Small allowance: Your production cost will be strictly controlled,including material cost and machining time cost.
3.Various grades and dimensions: with our CNC machining system,customized design is workable even for 1 PC.
200 * 200 * 20mm YG20 Tungsten Carbide Block For EDM Parts High Performance

Dimensions of solid tungsten carbide blocks
These dimensions are just part of our moulds list,if you can't find the dimension you are looking for,please contact us for confirmation.

Sr.No	Length(mm)	Width(mm)	Thickness(mm)	Sr.No	Length(mm)	Width(mm)	Thickness(mm)
1	50	50	2-40	11	250	250	2-200
2	70	70	2-50	12	300	300	2-200
3	100	100	2-70	13	70	50	2-40
4	102	102	2-70	14	110	80	2-50
5	105	105	2-70	15	125	72	2-50
6	125	125	2-80	16	150	60	2-50
7	120	120	2-80	17	155	60	2-50
8	150	150	2-100	18	150	100	2-80
9	180	180	2-150	19	200	100	2-80
10	200	200	2-150	20	300	200	2-80

200 * 200 * 20mm YG20 Tungsten Carbide Block For EDM Parts High Performance
Quality grade of tungsten carbide blocks
Main grade grade K10(YG6X),K20(YG6),K30(YG8),YG15,YG20,YT15(P10),YW1(M10)

Grade	ISO grade	Grain size (um)	Binder	density (g/cm³)	Hardness (HRA)	T.R.S (N/m㎡)
YG6A	K20	0.8	6	≥15.10	≥91.5	≥1580
YG6X	K10	1.0	6	≥15.00	≥91.0	≥1880
YL80.1	K30	1.5	8	≥14.80	≥89.5	≥2020
YL80.4	K30-K40	1.5	12	≥14.50	≥88.0	≥2600
YL80.2	K30-K40	1.5	15	≥14.00	≥87.0	≥2900
YL80.3		1.0	20	≥13.80	≥86.0	≥2600

200 * 200 * 20mm YG20 Tungsten Carbide Block For EDM Parts High Performance
Application of tungsten carbide blocks
1.Metal working:processed into press tool,blade,cutter,wear parts,blanks and polishing tungsten carbide blocks for machinery lathe to machine HSS material,Alu,steel,and stainless steel,etc.
2.Wood working:blank carbide plate and polished solid tungsten carbide plates for wood working stone.
3.Stone working:blank and polished solid tungsten carbide blocks for crusher machining of marble,granite,cobblestone,etc.
4.Other application:such as wear resistance parts of punching mold,measuring and cutting industry.
200 * 200 * 20mm YG20 Tungsten Carbide Block For EDM Parts High Performance
Customized size carbide blocks are available here,your inquiry will be more than welcome,work with us!
