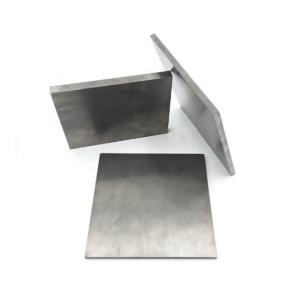

200x200 Tungsten Carbide Block with Customized Thickness for Metal Stamping
Main Features
1.stable property : testing pieces before mass production is produced to ensure the stable property of carbide flats.
2.Small allowance : small allowance helps to control our productin cost and decrease your importing cost.
3.Various grades and dimensions: with our CNC machining system,it is workable even for 1 PC rectangular carbide blanks.
Dimension
These dimensions are just part of our moulds,if you can't find the dimension you are looking for,please contact us for confirmation.
| Sr.No | Length(mm) | Width(mm) | Thickness(mm) | Sr.No | Length(mm) | Width(mm) | Thickness(mm) |
| 1 | 50 | 50 | 2-40 | 11 | 250 | 250 | 2-200 |
| 2 | 70 | 70 | 2-50 | 12 | 300 | 300 | 2-200 |
| 3 | 100 | 100 | 2-70 | 13 | 70 | 50 | 2-40 |
| 4 | 102 | 102 | 2-70 | 14 | 110 | 80 | 2-50 |
| 5 | 105 | 105 | 2-70 | 15 | 125 | 72 | 2-50 |
| 6 | 125 | 125 | 2-80 | 16 | 150 | 60 | 2-50 |
| 7 | 120 | 120 | 2-80 | 17 | 155 | 60 | 2-50 |
| 8 | 150 | 150 | 2-100 | 18 | 150 | 100 | 2-80 |
| 9 | 180 | 180 | 2-150 | 19 | 200 | 100 | 2-80 |
| 10 | 200 | 200 | 2-150 | 20 | 300 | 200 | 2-80 |
Quality Grades
Main grade grade K10(YG6X),K20(YG6),K30(YG8),YG15,YG20,YT15(P10),YW1(M10),for more information
please contact us through email.
| Grade | ISO grade | Grain size (um) | Binder | density (g/cm³) | Hardness
(HRA) | T.R.S (N/m㎡) |
| YG6A | K20 | 0.8 | 6 | ≥15.10 | ≥91.5 | ≥1580 |
| YG6X | K10 | 1.0 | 6 | ≥15.00 | ≥91.0 | ≥1880 |
| YL80.1 | K30 | 1.5 | 8 | ≥14.80 | ≥89.5 | ≥2020 |
| YL80.4 | K30-K40 | 1.5 | 12 | ≥14.50 | ≥88.0 | ≥2600 |
| YL80.2 | K30-K40 | 1.5 | 15 | ≥14.00 | ≥87.0 | ≥2900 |
| YL80.3 | | 1.0 | 20 | ≥13.80 | ≥86.0 | ≥2600 |
Application
1.Metal working:processed into press tool,blade,cutter,wear parts,blanks and polishing tungsten carbide plates for machinery lathe to machine HSS material,Alu,steel,and stainless steel,etc.
2.Wood working:blank carbide plate and polished solid tungsten carbide plates for wood working stone.
3.Stone working:blank and polished solid tungsten carbide plates for crushing of marble,granite,cobblestone,etc.
4.Other application:such as wear resistance parts of punching mold,measuring and cutting industry.
Company introduction
1. Factory with 20 years' experience with stable clients more than 30 countries.
2. Fast delivery,normally 7-10 days.
3.Sales staff beyond 5 years' experience in this field with good understanding and fluent english.
4.Prompt reply within 24 hours with experienced suggestions.
5.Customized carbide parts are more than welcome here.
Main Equipments
We also supply:
Tungsten carbide strips
Tungsten carbide rollers
Tungsten carbide bushings
Tungsten carbdie dies
Tungsten carbide customized parts
Customized size carbide rectangular parts are available here,your inquiry will be more than welcome,work with us!
