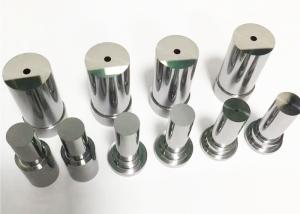

Tungsten Carbide Die carbide Stamping Die for Making Screws, Bolts and Nuts
Brief Introduction of Tungsten Carbide cold forging dies
1. 100% raw material to produce tungsten carbide products.
2. Hip sintered, high hardness, high wear resistance
3. Various sizes and full types available
4. Reasonable price,Fast delivery time
5. OEM Customized(small order accepted,professional technical support)
6. ISO 9001 Certification
How to get exactly quotation based on clients requirements:
Necessary information required for manufacturing tungsten carbide cold heading dies:
- Specification ( like OD*ID*Length size,shape,angle etc.)
- Tungsten carbide grade, or chemical composition
- Surface condition: sintered blank or fine grinding
- Tolerance on dimension ( if you have)
- If you are not quite clear about which tungsten carbide grade is suitable, please provide us the applications to suggest you a suitable one.
Quality grade of tungsten carbide cold forging dies
Main grade grade YL90(YG20C),YL90.4(YG24C),YL90.5(YG25C)
| Grade | Grain size (um) | Binder | density (g/cm³) | Hardness
(HRA) | T.R.S (N/m㎡) |
| YL80.2(YG15) | medium | 15% | 14.00-14.20 | ≥86.5 | ≥2900 |
| YL80.3(YG20) | fine | 20% | 13.50-13.80 | ≥85.0 | ≥2540 |
| YL80 | fine | 16% | 13.80-14.05 | ≥89.5 | ≥3200 |
| YL90(YG20C) | coarse | 20% | 13.50-13.70 | ≥83.0 | ≥2500 |
| YL90.1 | coarse | 16% | 13.90-14.10 | ≥84.5 | ≥2340 |
| YL90.2 | coarse | 18% | 13.70-13.90 | ≥83.5 | ≥2400 |
| YL90.4(YG24C) | coarse | 24% | 13.20-13.40 | ≥82.0 | ≥2600 |
| YL90.5(YG25C) | coarse | 25% | 13.00-13.20 | ≥81.0 | ≥2760 |
Package and delivery
Currently we have cartons,plywood case and metal drums.
Application of tungsten carbide cold forging dies
Tungsten carbide dies can be divided into four categories according to use:
1.Tungsten carbide anvil
2.Tungsten carbide drawing dies (such molds accounted for the vast majority of tungsten carbide die.)
3.Cold heading, cold punching, forming and shaping dies
4.Non-magnetic die
5.Hot tungsten carbide die
Metal working:processed into press tool,blade,cutter,wear parts,blanks and polishing tungsten carbide blocks for machinery lathe to machine HSS material,Alu,steel,and stainless steel,etc.
Production process of tungsten carbide cold forging dies
P.S: Customized size carbide blocks are available here,your inquiry will be more than welcome,work with us!
