Brand Name : CHAOYU
Model Number : Customized
Certification : ISO9001:2008,CE,SGS,etc.
Place of Origin : ZHUZHOU,CHINA
MOQ : Negotiation
Price : Negotiable
Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability : 10 tons per month
Delivery Time : 7-10 days
Packaging Details : Standard export cartons or plywood case.
Tolerance : h5,h6,h7
Item name : solid carbide round bar
Material : WC + Cobalt,100% original material
Surface treatment : Mirror Polished
Prodution Volume : 8-10 tons per month
Feedback : within 6 hours
Grit : Crushed Tungsten Carbide Grits
Advantages : Full dimension,fast delivery and stable quality.
Remarks : We could totally produce products as your drawing.
Application : Wear parts for petroleum industry

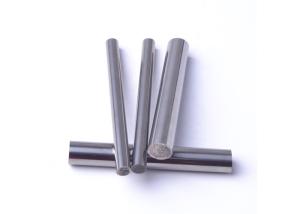

Sintered finishing Solid Tungsten Carbide Rod with length 300-330mm
Property of our tungsten carbide rods
Content: WC 90% Binder 10%
Grain size: 0.8um
Density: 14.50-14.60 g/cm³
Hardness: ≥HRA91.3
T.R.S≥3600N/m㎡
Brief Introduction of Tungsten Carbide Rods:
Grade: K10/K20/K30
Size: Customizable
Standard: GB
Certification: ISO9001
Dimensions of solid tungsten carbide rods
Please contact us for more information on carbide rods with coolant hole.
Dia(mm)
| Tol of Dia (mm) | Length(mm) | Tol of Length(mm) |
0.5-12
| +0.2/+0.4 | 1000/330/300/100 | 0/+5.0 |
12.5-20
| +0.3/+0.6 | 1000/330/300/100 | 0/+5.0 |
20-40
| +0.4/+0.8 | 1000/330/300/100 | 0/+5.0 |
Quality grade of tungsten carbide rods
Grade | ISO grade | Grain size (um) | Binder | density (g/cm³) | Hardness (HV30) | Hardness (HRA) | T.R.S (N/m㎡) |
CY10F | K05-K10 | 0.4 | 6 | 14.9 | 1950 | 93.0 | 2800 |
CY10M | K05-K10 | 1.2 | 6 | 14.8 | 1510 | 91.0 | 2600 |
CY15 | K10-K20 | 0.8 | 8 | 14.6 | 1610 | 92.0 | 3000 |
CY20(YG10X) | K20-K30 | 0.8 | 10 | 14.4 | 1610 | 92.0 | 3800 |
CY20F(YL10.2) | K20-K30 | 0.6 | 10 | 14.5 | 1570 | 91.5 | 3600 |
CY25UF | K30-K40 | 0.4 | 12 | 14.2 | 1610 | 92.0 | 4000 |
CY30M | K30-K40 | 1.5 | 15 | 14.2 | 1150 | 87.5 | 3200 |
Application of tungsten carbide rods
1.Tungsten carbide rods are carbide blank material of various carbide cutting tools,include carbide micro
drills,carbide reamers,carbide endmills,etc.
2.Tungsten carbide rods are used as carbide wear parts for machinery accessory.
3.Tungsten carbide rods are used as rotors,carbide pins,carbide scriber pins,etc.
Production Line of tungsten carbide rods:
OEM carbide ROD parts are available here,your inquiry will be more than welcome,work with us!
Name:Alisa Chen
Email:alisa@hncczy.com
![]() |
Sintered Finishing Solid Tungsten Carbide Rod With Length 300-330mm Images |
