Brand Name : CHAOYU
Model Number : Standard and Customized
Certification : ISO9001:2008,CE,SGS,etc.
Place of Origin : ZHUZHOU,CHINA
MOQ : Negotiation
Price : Negotiable
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 10 TONS per month
Delivery Time : 12-15 days
Packaging Details : Standard export cartons or plywood case.
Item name : Tungsten Carbide Sheet
Quality grade : K30 / YG8
Business Pattern : Factory with full production line
Color : gray
Material : 100% virgin raw materia
MOQ : 1 PC
OEM : Totally accept
Dimension : Standard and customized
Wholesale tungsten carbide plates / tungsten carbide blocks / flat /strip

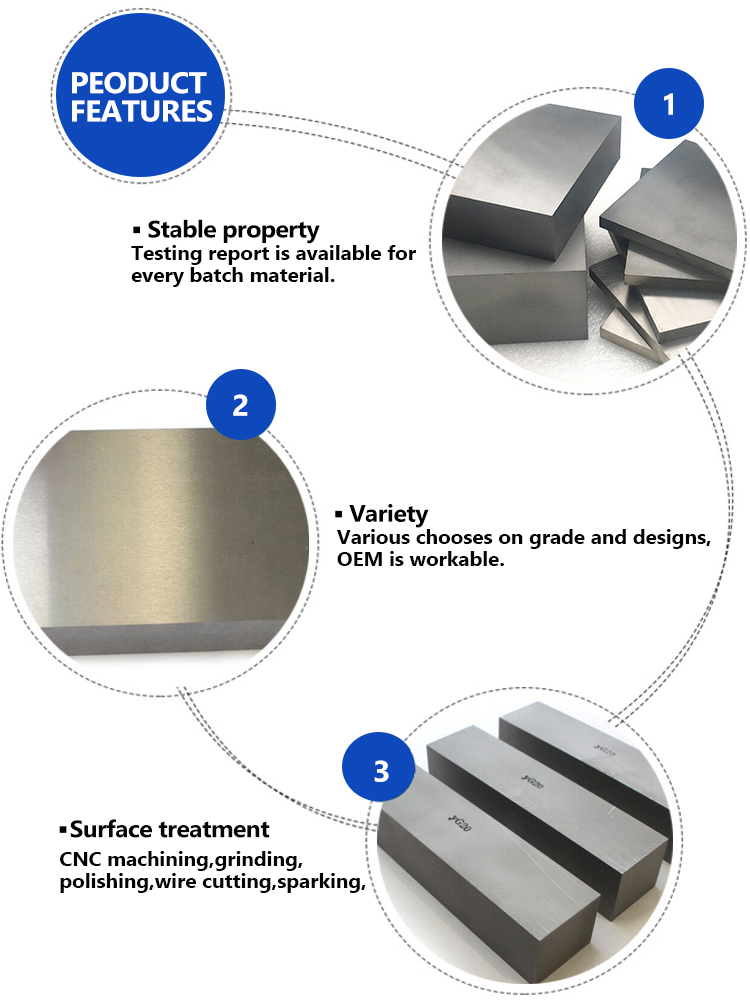

Main Features
1. stable property : testing pieces before mass production is produced to ensure the stable property of carbide flats.
2. Small allowance : small allowance helps to control our productin cost and decrease your importing cost.
Brief Information
Dimension
These dimensions are just part of our moulds,if you can't find the dimension you are looking for,please contact us for confirmation.
Sr.No | Length(mm) | Width(mm) | Thickness(mm) | Sr.No | Length(mm) | Width(mm) | Thickness(mm) |
1 | 50 | 50 | 2-40 | 11 | 250 | 250 | 2-200 |
2 | 70 | 70 | 2-50 | 12 | 300 | 300 | 2-200 |
3 | 100 | 100 | 2-70 | 13 | 70 | 50 | 2-40 |
4 | 102 | 102 | 2-70 | 14 | 110 | 80 | 2-50 |
5 | 105 | 105 | 2-70 | 15 | 125 | 72 | 2-50 |
6 | 125 | 125 | 2-80 | 16 | 150 | 60 | 2-50 |
7 | 120 | 120 | 2-80 | 17 | 155 | 60 | 2-50 |
8 | 150 | 150 | 2-100 | 18 | 150 | 100 | 2-80 |
9 | 180 | 180 | 2-150 | 19 | 200 | 100 | 2-80 |
10 | 200 | 200 | 2-150 | 20 | 300 | 200 | 2-80 |
Quality Grades
Main grade grade K10(YG6X),K20(YG6),K30(YG8),YG15,YG20,YT15(P10),YW1(M10),for more information
please contact us through email.
Grade | ISO grade | Grain size (um) | Binder | density (g/cm³) | Hardness (HRA) | T.R.S (N/m㎡) |
YG6A | K20 | 0.8 | 6 | ≥15.10 | ≥91.5 | ≥1580 |
YG6X | K10 | 1.0 | 6 | ≥15.00 | ≥91.0 | ≥1880 |
YL80.1 | K30 | 1.5 | 8 | ≥14.80 | ≥89.5 | ≥2020 |
YL80.4 | K30-K40 | 1.5 | 12 | ≥14.50 | ≥88.0 | ≥2600 |
YL80.2 | K30-K40 | 1.5 | 15 | ≥14.00 | ≥87.0 | ≥2900 |
YL80.3 | 1.0 | 20 | ≥13.80 | ≥86.0 | ≥2600 |

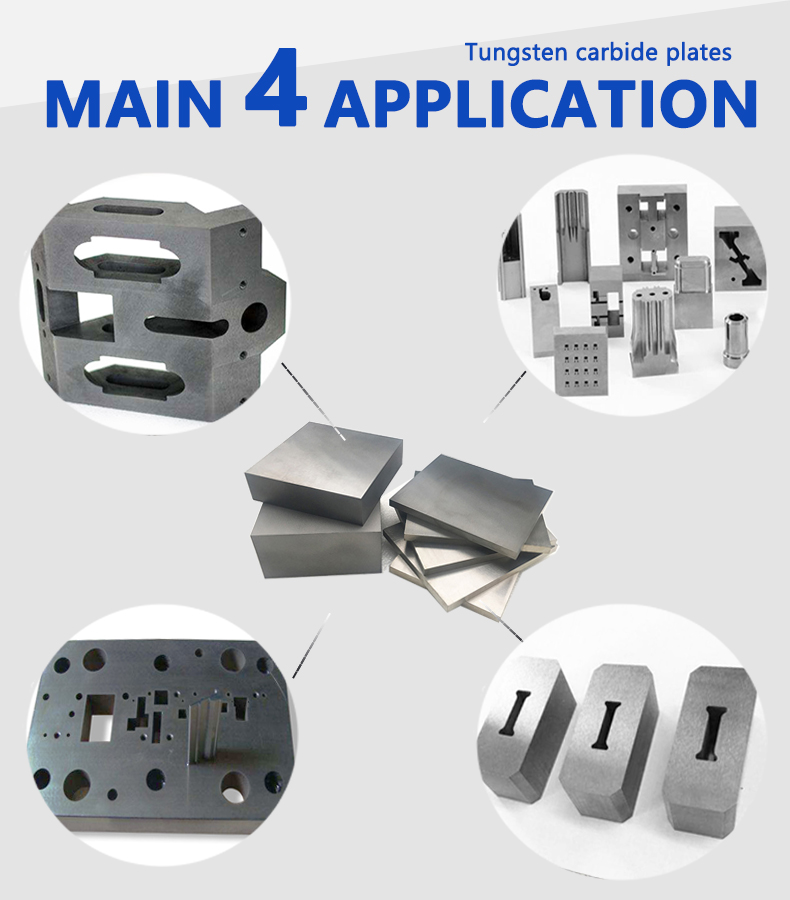

Application
1.Metal working:processed into press tool,blade,cutter,wear parts,blanks and polishing tungsten carbide plates for machinery lathe to machine HSS material,Alu,steel,and stainless steel,etc.
2.Wood working:blank carbide plate and polished solid tungsten carbide plates for wood working stone.
3.Stone working:blank and polished solid tungsten carbide plates for crushing of marble,granite,cobblestone,etc.
4.Other application:such as wear resistance parts of punching mold,measuring and cutting industry.
Customized size carbide rectangular parts are available here,your inquiry will be more than welcome,work with us!
![]() |

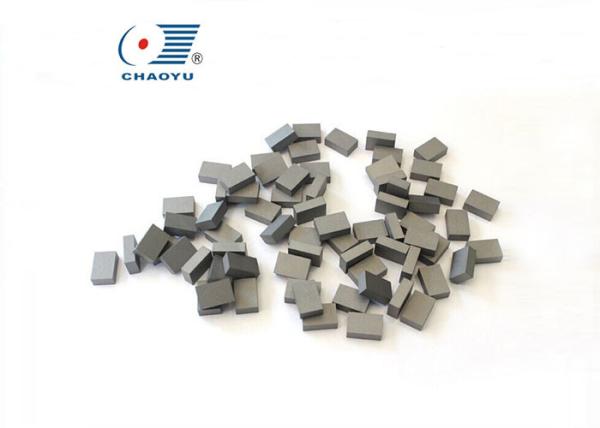

Durable Tungsten Carbide Sheet , Tungsten Carbide Blocks / Flat /Strip Images |
