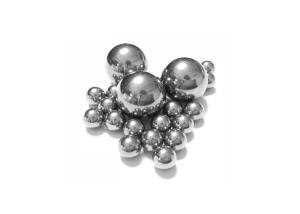

G25 Tolerance Polished 9.525mm 15.875mm 16mm 19.05mm 20mm 25.4mm tungsten carbide valve balls
Product detail
Advantanges of our tungsten carbide spheres
1.stable property: tungsten carbide material outperform steel spheres in terms of hardness,stablity and impact strength.
2.High precision: we supply a wide range of tolerance request from G5 to G50.
3.Various grades and specifications:please find the grade table and specification table as below.
Dimensions of solid tungsten carbide spheres
These specs are the most common dimensions in our factory,if you can't find the one you need,please contact for more information.
| Diameter (mm) | Diameter (mm) | Diameter (mm) | Diameter (mm) |
| 2.0 | 2.38125 (3/32 '') | 2.5 | 3.0 |
| 3.175 (1/8 '') | 3.5 (9/64 '') | 4.0 | 4.5 |
| 4.7625 | 5.0 | 5.5 | 6.0 |
| 6.35 (1/4 ‘’) | 6.5 | 7.0 | 7.144 (9/32 '') |
| 7.5 | 7.938 (5/16 '') | 8.0 | 8.5 |
| 9.0 | 9.525 (3/8 '') | 10.0 | 11.0 |
| 11.1125 (0.4375'') | 12.0 | 12.7 (0.5'') | 13.0 |
| 13.494 | 14.0 | 14.2875 (9/16 '') | 15.0 |
| 15.875 (5/8 '') | 16.0 | 17.0 | 17.4625 (11/16 '') |
| 18.0 | 19.0 | 19.05 (3/4 '') | 20.0 |
| 22.225 (7/8 '') | 25.0 | 25.4 ( 1'' ) | 28.575( 9/8 '') |
| 30.0 | 31.75 (1.25'') | 38.1 (1.5'') | 42.8625 ( 27/16 '') |
| 50.8 (2'') | | | |
Quality grade of tungsten carbide spheres
we offer a wide range of tungsten carbide spheres for you to choose,the main quality grade is K10(YG6X),K20(YG6),K30(YG8).
| Grade | ISO grade | Grain size (um) | Binder | density (g/cm³) | Hardness
(HRA) | T.R.S (N/m㎡) |
| YG6X(C3) | K10 | 1.2 | 6 | ≥15.00 | ≥91.0 | ≥1880 |
| YG6(C1) | K20 | 1.5 | 6 | ≥14.90 | ≥90.0 | ≥1580 |
| YG8(C2) | K30 | 1.5 | 8 | ≥14.80 | ≥89.5 | ≥2020 |
Application of tungsten carbide spheres
Tungsten carbide spheres are mainly used for bearings,valves,flow meters,ball screws,gauging and ball pens,etc
Package and Delivery of tungsten carbide spheres:
Production process of tungsten carbide spheres
-Research and development
-Ball milling:Tungsten carbide raw material are mixed in rolling ball mill
-Deccication:Tungsten carbide raw material is deccicated in the drying tower
-Suppressing:TPA suppressing machine
-Quality checking:Inspection of semi-finished carbide products
-Sintering: HIP sintering
-Machinging: Grinding,EDM wire cutting,EDM sparkling,PG grinding
-Quality checking: Inspection of finished carbide spheres
-Package and delivery:Safe package and fast delivery.
Customized size carbide spheres are available too,your inquiry will be more than welcome,work with us!
