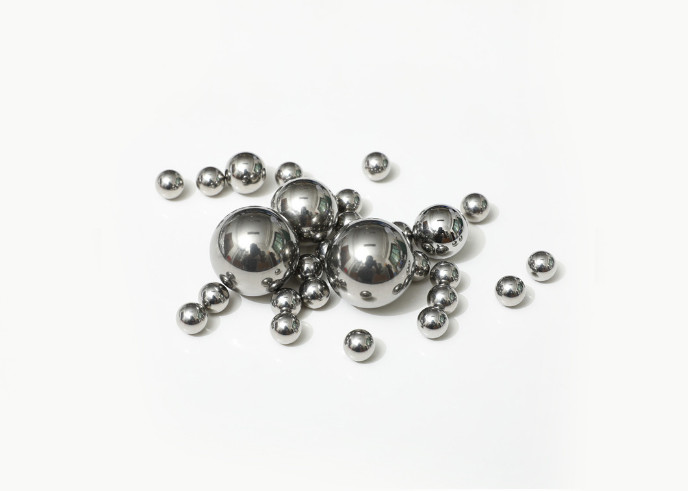

Φ2.0mm Φ3.175mm Tungsten Carbide Beads
We supply:
1. Blank tungsten carbide shperes
2. High precision tungsten carbide spheres
3. Customized tungsten carbide spheres
You will get:
1. Communication with experienced staff with over 5 years' experience in this field.
2. Competitive price with uncompromized quality.
4. Qualified products with stable property and strict inspection on dimension.
5. Safe and fast delivery.
6. After-sale service
7. Constant update of raw material market.
Dimensions of solid tungsten carbide spheres
These specs are the most common dimensions in our factory,if you can't find the one you need,please contact for more information.
| Diameter (mm) | Diameter (mm) | Diameter (mm) | Diameter (mm) |
| 2.0 | 2.38125 (3/32 '') | 2.5 | 3.0 |
| 3.175 (1/8 '') | 3.5 (9/64 '') | 4.0 | 4.5 |
| 4.7625 | 5.0 | 5.5 | 6.0 |
| 6.35 (1/4 ‘’) | 6.5 | 7.0 | 7.144 (9/32 '') |
| 7.5 | 7.938 (5/16 '') | 8.0 | 8.5 |
| 9.0 | 9.525 (3/8 '') | 10.0 | 11.0 |
| 11.1125 (0.4375'') | 12.0 | 12.7 (0.5'') | 13.0 |
| 13.494 | 14.0 | 14.2875 (9/16 '') | 15.0 |
| 15.875 (5/8 '') | 16.0 | 17.0 | 17.4625 (11/16 '') |
| 18.0 | 19.0 | 19.05 (3/4 '') | 20.0 |
| 22.225 (7/8 '') | 25.0 | 25.4 ( 1'' ) | 28.575( 9/8 '') |
| 30.0 | 31.75 (1.25'') | 38.1 (1.5'') | 42.8625 ( 27/16 '') |
| 50.8 (2'') | | | |
Quality grade of tungsten carbide spheres
we offer a wide range of tungsten carbide spheres for you to choose,the main quality grade is K10(YG6X),K20(YG6),K30(YG8).
| Grade | ISO grade | Grain size (um) | Binder | density (g/cm³) | Hardness
(HRA) | T.R.S (N/m㎡) |
| YG6X(C3) | K10 | 1.2 | 6 | ≥15.00 | ≥91.0 | ≥1880 |
| YG6(C1) | K20 | 1.5 | 6 | ≥14.90 | ≥90.0 | ≥1580 |
| YG8(C2) | K30 | 1.5 | 8 | ≥14.80 | ≥89.5 | ≥2020 |
Application of tungsten carbide spheres
Tungsten carbide spheres are mainly used for bearings,valves,flow meters,ball screws,gauging and ball pens,etc
Package and Delivery of tungsten carbide spheres:
Production process of tungsten carbide spheres
Customized size carbide spheres are available too,your inquiry will be more than welcome,work with us!
