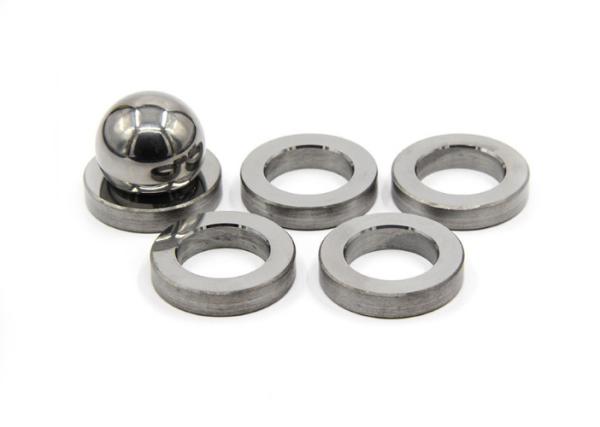

YN8 non-magnetic V11-375 polished Tungsten Carbide saddles for sealing valves of oil pumps
Features of tungsten carbide saddles
1. Valve balls and valve saddles are widely used in oil fields.
2. Valve Ball and saddles performance directly affects the use effect and service life of the sucker rod pumps.
3. Each ball-and-saddle combination is vacuum tested to ensure a perfect seal is obtained in all positions of contact.
Tips of tungsten carbide saddles
-We can supply tungsten carbide ball and valve seat with high precision.
-With high corrosion and wear resistance, and high strength and temperature resistant, our valve balls (tungsten carbide pellets) and seats are exported to many countries.
-Made of tungsten carbide, Tungsten Carbide round Balls/cemented carbide ball/hard alloy ball is also called hard alloy balls. It is used for places requiring extreme hardness and resistance to wear and abrasive, hard shocks and impacts.
-Tungsten carbide saddles can be used for special valves, flow meters, recirculating balls bearing screws, liner bearing and balls for ball point pens. They are also used for mining, as pivots and points of compotation. What's more, they are also used for measurements or calibrations of holes and measurement checking devices.
Dimensions of solid tungsten carbide saddles
These specs are the most common dimensions in our factory,if you can't find the one you need,please contact for more information.
| Sr. code | V11-106 | V11-125 | V11-150 | V11-175 | V11-200 | V11-225 | V11-250 | V11-375 |
| SD | 0.625
(15.88) | 0.750
(19.05) | 0.938
(23.84) | 1.125
(28.58) | 1.250
(31.75) | 1.375
(34.93) | 1.688
(42.88) | 2.250
(57.15) |
| D 0/-0.005 | 0.793
(20.14) | 0.918
(23.32) | 1.168
(29.67) | 1.388
(36.26) | 1.478
(37.54) | 1.720
(43.69) | 2.010
(51.05) | 3.072
78.03 |
d
+/-0.005 | 0.460
(11.68) | 0.550
(13.97) | 0.670
(17.02) | 0.825
(20.96) | 0.960
(24.38) | 1.060
(26.92) | 1.310
(33.27) | 1.700
(43.18) |
h
+/-0.01 | 0.500
(12.70) | 0.500
(12.70) | 0.500
(12.70) | 0.500
(12.70) | 0.500
(12.70) | 0.500
(12.70) | 0.500
(12.70) | 0.500
(12.70) |
Quality grade of tungsten carbide saddles
we offer a wide range of tungsten carbide seats for you to choose,the main quality grade is
K30(YG8),YG11,YG10X.
| Grade | ISO grade | Grain size (um) | Binder | density (g/cm³) | Hardness
(HRA) | T.R.S (N/m㎡) |
| YG6X | K10 |
fine
| 6 | ≥14.95 | ≥91.5 | ≥1880 |
YG8(C2) | K30 | medium | 8 | ≥14.80 | ≥89.5 | ≥2020 |
YG11
| K40 | medium | 11 | ≥14.70 | ≥87.0 | ≥2600 |
YG10X
| | fine | 10 | ≥14.60 | ≥91.5 | ≥3200 |
Application of tungsten carbide saddles
For sealing of valves of oil pumps in petroleum industry's sand containing wells, viscous oil wells, sea oil wells, high pressure sulfur resistant oil wells, compatible Cemented Carbide valve seats,etc.
Production of tungsten carbide saddles
Customized tungsten carbide saddles are available too,your inquiry will be more than welcome,work with us!
