cemented carbide wear parts tungsten carbide stem seat valve sealing
Features of tungsten carbide stem seat
-Matched with a unique product called tungsten carbide hollow ball,which is often used in oil and nature gas industry,If you are interested in our hollow spheres, please contact with us.
-The TC Balls are manufactured as per Anti-Friction Bearing Manufacturer Association (AFMBA) standards.
-Standard sized balls in 6% Cobalt material are readily available in stock with us.
-These Tungsten Carbide Seats are used for various Oil Field Equipment and Oilfield Valves such as Conventional Gas Lift Valves, Wireline Retrivable (WLR) Injection Pressure Operated (IPO) Gas Lift Valves etc.
Tips of tungsten carbide stem seat
-We can supply tungsten carbide ball and valve seat with high precision.
-With high corrosion and wear resistance, and high strength and temperature resistant, our valve balls (tungsten carbide pellets) and seats are exported to many countries.
-Made of tungsten carbide, Tungsten Carbide round Balls/cemented carbide ball/hard alloy ball is also called hard alloy balls. It is used for places requiring extreme hardness and resistance to wear and abrasive, hard shocks and impacts.
-Tungsten carbide saddles can be used for special valves, flow meters, recirculating balls bearing screws, liner bearing and balls for ball point pens. They are also used for mining, as pivots and points of compotation. What's more, they are also used for measurements or calibrations of holes and measurement checking devices.
Dimensions of solid tungsten carbide stem seat
These specs are the most common dimensions in our factory,if you can't find the one you need,please contact for more information.
| Sr. code | V11-106 | V11-125 | V11-150 | V11-175 | V11-200 | V11-225 | V11-250 | V11-375 |
| SD | 0.625
(15.88) | 0.750
(19.05) | 0.938
(23.84) | 1.125
(28.58) | 1.250
(31.75) | 1.375
(34.93) | 1.688
(42.88) | 2.250
(57.15) |
| D 0/-0.005 | 0.793
(20.14) | 0.918
(23.32) | 1.168
(29.67) | 1.388
(36.26) | 1.478
(37.54) | 1.720
(43.69) | 2.010
(51.05) | 3.072
78.03 |
| d
+/-0.005 | 0.460
(11.68) | 0.550
(13.97) | 0.670
(17.02) | 0.825
(20.96) | 0.960
(24.38) | 1.060
(26.92) | 1.310
(33.27) | 1.700
(43.18) |
| h
+/-0.01 | 0.500
(12.70) | 0.500
(12.70) | 0.500
(12.70) | 0.500
(12.70) | 0.500
(12.70) | 0.500
(12.70) | 0.500
(12.70) | 0.500
(12.70) |
Quality grade of tungsten carbide stem seat
we offer a wide range of tungsten carbide seats for you to choose,the main quality grade is
K30(YG8),YG11,YG10X.
| Grade | ISO grade | Grain size (um) | Binder | density (g/cm³) | Hardness
(HRA) | T.R.S (N/m㎡) |
| YG6X | K10 |
fine
| 6 | ≥14.95 | ≥91.5 | ≥1880 |
| YG8(C2) | K30 | medium | 8 | ≥14.80 | ≥89.5 | ≥2020 |
|
YG11
| K40 | medium | 11 | ≥14.70 | ≥87.0 | ≥2600 |
|
YG10X
| | fine | 10 | ≥14.60 | ≥91.5 | ≥3200 |
Application of tungsten carbide stem seat
For sealing of valves of oil pumps in petroleum industry's sand containing wells, viscous oil wells, sea oil wells, high pressure sulfur resistant oil wells, compatible Cemented Carbide valve seats,etc.
Production of tungsten carbide stem seat
Our factory is professionally produce customized, non-standard, special and non-magnetic parts.
Our business is focus on:
1. Customized and special shape parts and workblank.
2. Non-standard parts and workblank.
3. Dies or workblank of stretching, drawing, cutting, flatting, hot forging, cold heading, cold extruding, forming for all related machinery industry.
4. Non-magnetic alloy dies for magnetic industry.
5. Standard parts of rod, block, bar and stick, etc.
6. Mining tools like bits, blaze, inlay cutter, sand maker's T- bar and R-bar, etc.
7. Other wear-resistance, anti-corrosion and non-magnetic product.
Customized tungsten carbide stem seat are available too,your inquiry will be more than welcome,work with us!
Product Tags:
|
|

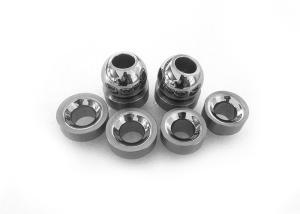

High Hardness Cemented Carbide Wear Parts Tungsten Carbide Stem Seat for Valve Sealing Images
|
